I have read a lot of purchase orders for factory tour audio, and they all look the same on the first page. A transmitter count, a receiver count, a bundle of headsets, a charging case, a delivery date. The second page carries the commercial terms. What almost never appears on either page is a sentence saying the equipment was walked through the actual plant before the money moved.
That omission is not laziness. A trial takes a spare morning, a route that has to be cleared with production, and two groups of people willing to walk it twice. Nobody has a template for that, so it slides to the week after delivery, which is usually the week of the first real visitor party. The three units below need to be tested against quite different failure modes, which is why one generic trial rarely covers the order.
The Line a Quote Leaves Blank
Quotations are built around quantities because quantities are easy to price. Numbers travel well between a buyer and a supplier, and both sides can check them without leaving their desks. Coverage does not work that way. Whether a receiver still hears its guide at the far end of a shot-blasting bay is a property of that bay, not of the order form, and it will not appear in any document produced before someone carries the kit there.
The practical cost of skipping the walk-through is that the first visitor party becomes the trial. Mistakes made in front of a customer delegation are expensive in a way that a wasted morning is not, and the fixes available on the day are improvisation: raise the volume, shorten the route, split the group. Those workarounds then harden into the site's standard procedure. A short trial is cheaper than a permanently shortened route.
A Receiver Count Is Not a Test
Counting what arrived is a receiving inspection, not a field trial. The items on the delivery note can all be present, switch on, and pair correctly in the meeting room, and the installation can still fail at the first bend where the building's steel changes from a frame to a full mezzanine deck. What a walk-through adds is movement, distance, obstruction and time. The table below sets out what each of those has to settle before an order is treated as proven.
| What the trial has to settle | How it shows up during a walk-through | What counts as settled |
|---|---|---|
| Audio continuity along the whole route | A drop-out at one fixed turn, beside a lift shaft, or next to a machine that starts up mid-sentence | A second pass with no repeat of the same dead spot |
| Separation when two parties run at once | One group catching the other's commentary, or a receiver that refuses to leave the wrong channel | Two parties twenty metres apart, each hearing only their own guide |
| Behaviour in the second and third hour | Volume sag, a receiver going quiet without warning halfway round | The published runtime still holds, with margin left when the route ends |
Two Teams Through One Doorway

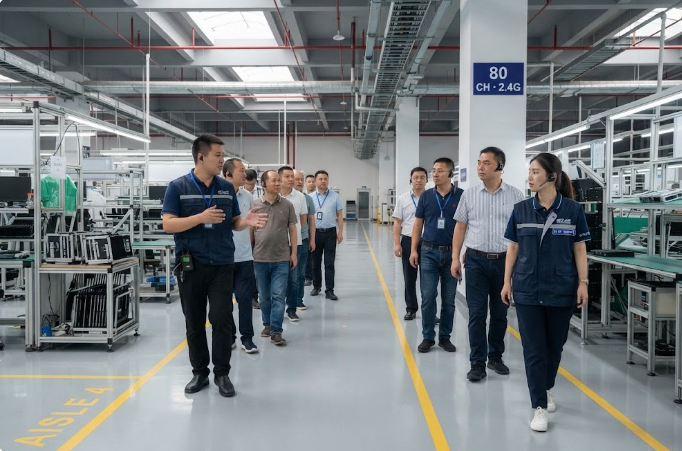

The unit I would put on a multi-party route first is the RC2408, because the thing it offers that a small kit cannot is channel headroom. It carries eighty interference-free channels on the 2403-2483MHz 2.4GHz ISM band, with one-key channel synchronization, and a single transmitter feeds an unlimited number of receivers. On a plant where a customer delegation and a school group are both on site the same morning, that headroom is what stops the two parties from having to be scheduled against each other.
Its published figures are a 200-metre range, 59g for the transmitter and 50g for the receiver, ten hours of talk time on the transmitter and twenty on the receiver, with CE and RoHS certification. The trial for this unit is a traffic test rather than a coverage test: send two groups out of one door in opposite directions, let them pass each other in a narrow aisle, and listen for crosstalk.
Three Floors and a Machine Shop

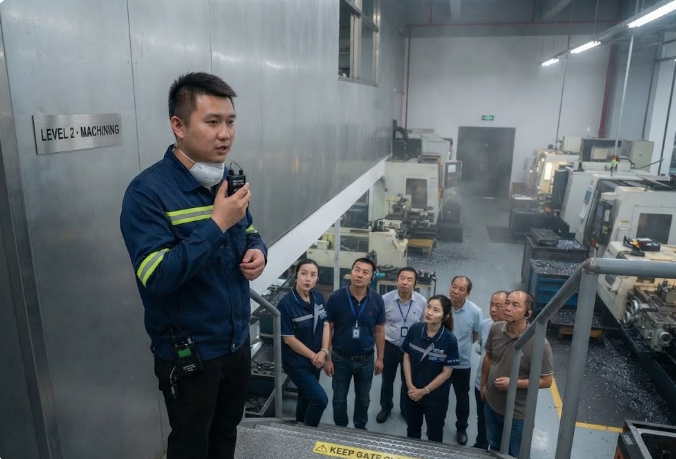

Where the plant spreads vertically rather than along one corridor, the RC8860 is the unit worth testing first. It runs on the 860-870MHz UHF band with twenty channels set by PLL synthesis, and its published effective range is two hundred metres in open ground with strong penetration through walls and obstacles. That penetration is exactly the claim a three-storey route tests, so the trial should be run on the worst floor rather than the most convenient one.
The page also gives a 50Hz-12kHz frequency response, 10mW receiver output, a 1500mAh transmitter cell rated at ten hours, a 1000mAh receiver cell rated at twenty, transmitter and receiver weights of 59g and 50g, and an IPX4 splash-proof rating that matters in a plant where hand-washing points and coolant mist are normal. Twenty channels is the figure to write down before committing: it sets how many parties can share the building at once, whatever the range looks like on paper.
Switching Modes in Front of Visitors

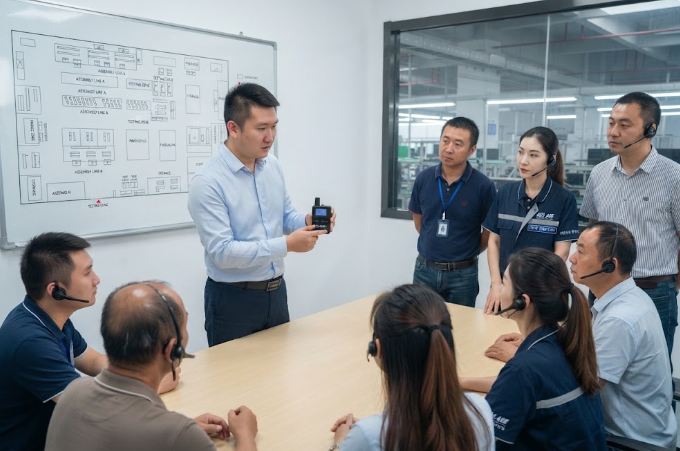

The third unit earns its place for a different reason. The RC085 carries two working modes on the same 470-510MHz UHF platform, an F1 one-way broadcast setting and an F2 two-way setting for question-and-answer walkthroughs, plus an LCD smart screen showing battery, channel and signal in real time. On a plant tour that turns into a training session halfway round, a guide who can change mode on the spot removes a queue of small interruptions.
Its published transmission distance is also two hundred metres, with auto sleep and wake-up managing power across a long day, and CE, RED and RoHS certification. The channel count is not stated on the product page, so it should be confirmed in writing rather than inferred from the range figure. The trial that matches this unit is a usability test: hand it to a duty engineer who has never seen it and time how long the mode change takes.
What a Failed Walk-Through Looks Like
A failed trial is almost never silence. Total failure is easy to spot and easy to fix, which is why it is rare. The results that cause trouble are the ones that pass on the day and fail in service: a route that only works on the first pass, because the second pass happens with more machinery running; a kit that only works while the guide stays near the front, which is not where a guide stands on a busy floor; a pack that only works on a full charge, which hides a receiver that is quietly losing capacity.
Two habits catch most of those. Walk the route twice in the same session, once before production starts and once with the line running, and write down the time and the location of anything that breaks. Then repeat one leg with a deliberately depleted receiver, so the behaviour near the end of a shift is seen before a customer sees it.
Writing the Test Into the Paperwork
The clause itself does not need to be long. It has to name who supplies the units for the trial, how many routes are covered, over how many days, what happens to the equipment afterwards, and which side keeps the written record. A supplier who can put a small kit in a buyer's hands makes this straightforward: the RC8860 page, for instance, invites customers to request a sample kit of one transmitter and two receivers to check range, battery life and audio clarity on their own site.
Published figures for the three units sit in the table below, taken from their product pages on the day of writing. They are the numbers a trial is meant to verify, not ｒｅｐｌａｃｅ.
| Model | Band | Channels | Range | Certification |
|---|---|---|---|---|
| RC2408 | 2403-2483MHz (2.4GHz ISM) | 80 | Up to 200m | CE, RoHS |
| RC8860 | 860-870MHz UHF | 20 (PLL) | Up to 200m | CE, RoHS |
| RC085 | 470-510MHz UHF | 100 | Up to 200m | CE, RED, RoHS |
One cell in that table is deliberately not filled. The RC085 page describes multi-channel group operation without publishing a channel count, and a number copied from a sibling model would be worse than a blank. Buyers who need that figure for a tender should have the supplier confirm it in writing alongside the trial terms.
Where the Sample Leaves and the Decision Starts
Three things should still be on the desk when the trial kit goes back. The breakpoint record, with times and locations. The channel list actually used, not the one on the plan. And the names of the people who walked the route, because they are the ones a supplier will need to speak to if a fault turns up later. Anyone comparing the arrangements other sites settled on can read the write-ups in our factory tour audio deployments before drafting the clause.
If the order is going out this week, the cheapest change is still the one that costs a morning: put three units on the floor, walk the real route twice, and write the result next to the quantities. Buyers who want the full range behind that decision can start from our wireless tour guide system range and then request a factory tour solutions review with the route plan attached.
